91 Isuzu Pickup - Impulse Turbo Project!!

Discuss anything related to drivetrain mods here (Engine &Transmission Swaps, lift, gearing, exhaust, etc)

Moderator: Staff

91 Isuzu Pickup - Impulse Turbo Project!!

Postby cianciolokeith » Wed Nov 18, 2009 1:12 am

Hey everybody, Keith out of Port St Lucie, Florida here!! I havn';t seen anyone do a turbo project on the 4zd1 carb'd truck, so thought I'd start a thread on what I have to do to get this going!! Am going to use an Isuzu Impulse turbo setup.. Well, here is the first set of pictures!!

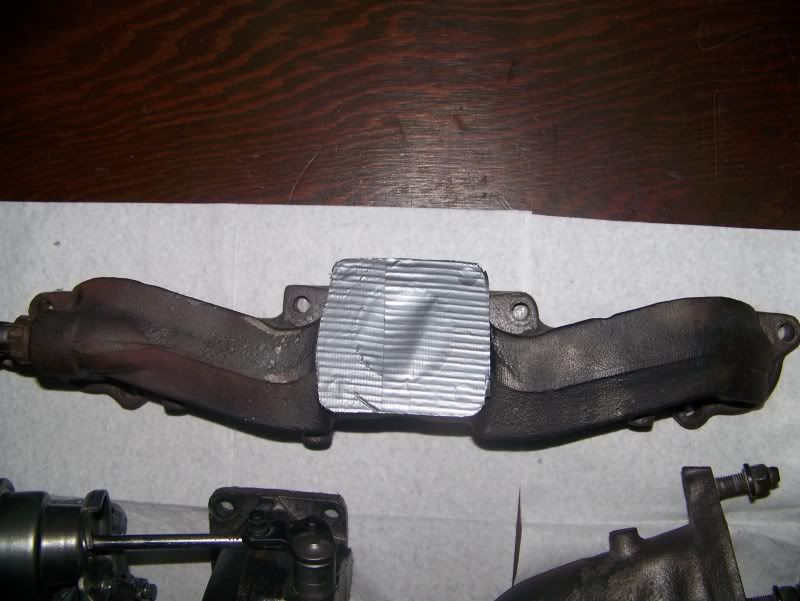

This is the first picture of the exhaust manifold. The impulse turbo manifold bolts directly onto the Pickup head, so no custom manifold needs to be made!! This is sandblasted & about to be painted!!


Another picture of the manifold, from a different angle!!

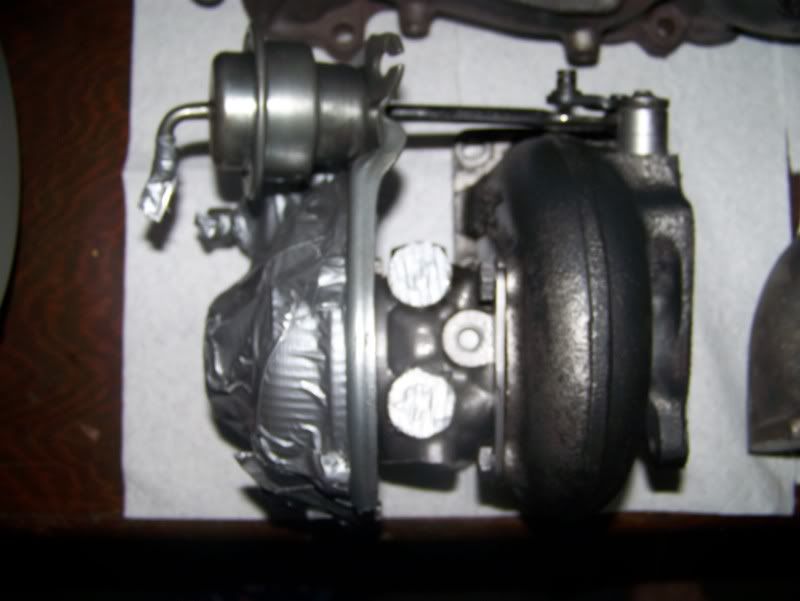

Picture of the turbocharger... Polished the intake compressor, and sandblasted the rest.. ALso ready for paint at this point!

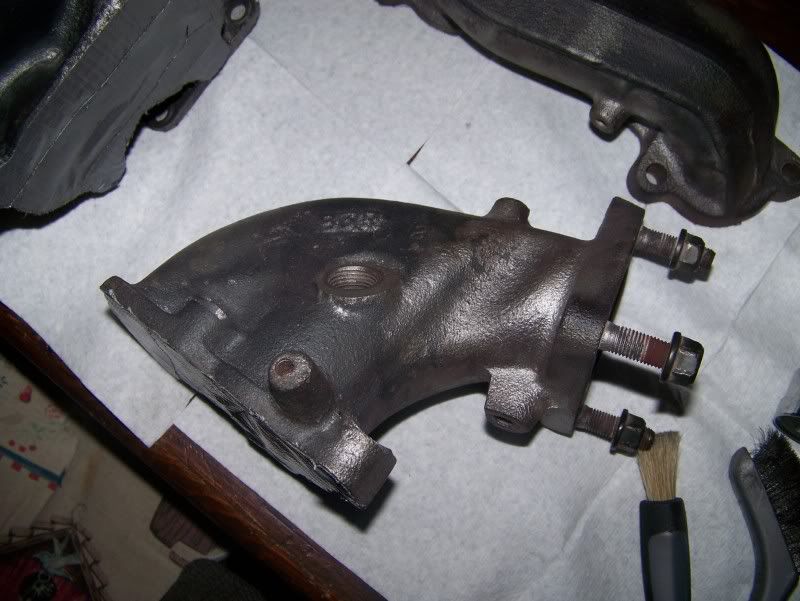

Downpipe, sandblasted & ready for paint.

I ordered all new studs, bolts, and nuts from Isuzu, because the ones from the turbocharger were rather rusty, and all of them are still available from the factory, and are rather cheap.


Studs & Nuts to bolt Exhaust Maniold to Cylinder Head->
8942563750 x 7@$0.95/ea stud
9091105080 x 7@$0.58/ea nut

Studs & Nuts to bolt Exhaust Turbine to Exhaust Manifold->
8971045081 x 4@$2.78/ea stud
8971616070 x 4@$1.68/ea nut

Studs & Nuts to bolt Downpipe to Exhaust Turbine->
8941262100 x 3@$2.20/ea stud
8941566260 x 3@$0.77/ea nut

Studs & Nuts to bolt Exhaust pipe to Downpipe.->
0208010350 x 4@$1.00/ea bolt
8942013081 x 4@$2.81/ea nut

Bolts to bolt Intake Compressor to Turbo Turbine-> not serviced no part number

Bolts to bolt Exhaust Turbine to Turbo Turbine.-> not serviced no part number

Bolts to bolt Coolant lines to Turbo Turbine.-> 1096750810 x 2@$3.78/ea banjo bolt
9095714120 x 4@$0.63/ea gasket

Bolts to bolt Oil Lines to Turbo Turbine.->
0505406160 x 2@$1.72/ea bolt
9019108160 x1@$0.63/ea banjo bolt
9095714100 x 2@$0.73/ea gasket

Will have price on the gasket for the trubocharger & whatnot tomorrow, and will follow up with prices & part numbers!! Trying to be thorough as possible!! If anyone has recomendations on this build, please let me know!!!

-Keith
Port Saint Lucie, Florida 34953
cianciolokeith
Drives on Gravel

Posts: 39
Joined: Thu Sep 17, 2009 7:37 am
Location: Port St Lucie, FL
Has thanked: 0 time
Have thanks: 0 time

Sponsor


Postby Bob w/ a trooper » Wed Nov 18, 2009 1:48 pm

I don't have a whole lot to add other than: Good luck, and keep posting info. I'm looking at the possibility of turboing my trooper at some point in the future, so it'd be great to see what someone else has figured out.

If you haven't seen this already, here's a guy that did it: http://www.houlster.com/amigo/turbo/index.htm

Same guy, bigger turbo http://www.houlster.com/amigo/turbo2/index.htm

Good luck!
--
Bob

'91 2.6l manual trooper
Bob w/ a trooper
Rodeo King

Posts: 186
Joined: Fri Oct 16, 2009 12:51 am
Location: Houston, TX
Has thanked: 1 time
Have thanks: 1 time

Postby bigpetey » Wed Nov 18, 2009 5:16 pm

If you get the chance keep posting. I'm really interested in running a turbo setup on my motor. when I rebuilt my motor I did not bore the block over or shave the head. So I think the stock compression should be low enough to keep the motor from throwing the rods through the block. Someone posted here a few month back about running a turbo setup and he made his own carb hat but I have not been able to find his post to see what he used. I'm really interested in seeing how that works out for you.
87 trooper- Weber Carb, Pacesetter Header, Delta Cam
Carter fuel pump/Holley regulator, Ported/Polished head
EGR Delete, Skyjacker shocks,Aisins, Body/Shackle Lift
Sporting a Rustoleum and Bedliner Paint Job


Those who say it Cant be done should Not interrupt those who are actually doing it.
User avatar
bigpetey
Loyal P'up

Posts: 127
Joined: Fri Nov 09, 2007 1:28 am
Location: Illinois
Has thanked: 0 time
Have thanks: 0 time

New Updates - 11.18.2009

Postby cianciolokeith » Wed Nov 18, 2009 7:57 pm

New Update - Turbo parts have been painted, waiting on hardware to come from Isuzu themselves. Updates to come!!!

Polished & Black!!!

Polished & Black!!!

Pretty Downpipe!!!

Nice & painted Exhaust Manifold!!!

Exhaust Manifold - See, bolts right to the isuzu pickup head =D

New Fuel Regulator!!!
cianciolokeith
Drives on Gravel

Posts: 39
Joined: Thu Sep 17, 2009 7:37 am
Location: Port St Lucie, FL
Has thanked: 0 time
Have thanks: 0 time

Postby Cronk » Thu Nov 19, 2009 7:50 am

Scott and I talked about doing this to my Trooper when I was back in California. I tried but I couldn't find the parts...... Turns out they are pretty hard to come by......
I'm interested to see the end result here.
User avatar
Cronk
Subscriber

Posts: 6526
Joined: Sun Dec 18, 2005 3:41 am
Location: Kokomo, Indiana by way of, wait, I'm not travelling anymore.....
Has thanked: 110 times
Have thanks: 76 times

Postby cianciolokeith » Thu Nov 19, 2009 10:37 pm

Still waiting on bolts to come to finish the turbo build. Just ordered a stock Isuzu Impulse top mount intercooler for this build. Will make it possible to push roughly 10-12psi through the stock turbocharger, being intercooled. Got final paint on the turbo charger today!!



Updates coming!!
cianciolokeith
Drives on Gravel

Posts: 39
Joined: Thu Sep 17, 2009 7:37 am
Location: Port St Lucie, FL
Has thanked: 0 time
Have thanks: 0 time

Postby cianciolokeith » Fri Dec 04, 2009 8:59 pm

Well the turbocharger is put back together, with all new hardware, and the install will begin on Monday.


For my oil inlet, I am using a Weatherhead fitting, that is a brass block that has the same male thread as the Oil Pressure Sensor (this will thread into the block), then has a female inlet where the oil pressure sensor will thread into, and a hose fitting on the bottom, to run my oil inlet line off of.

I grabbed the same hose fitting to tap my oil pan, and thread into, for my oil return.

I found out that the Coolant Line underneath the exhaust manifold on the Isuzu Impulse is the same as the pickup, except that it has two hose fittings added to it, to cool the turbo charger, so will not have to do any modifications on those. Pictures of the coolant line will be up tomorrow.

Updates & pictures on the way!!!
cianciolokeith
Drives on Gravel

Posts: 39
Joined: Thu Sep 17, 2009 7:37 am
Location: Port St Lucie, FL
Has thanked: 0 time
Have thanks: 0 time

Postby Bob w/ a trooper » Tue Dec 08, 2009 3:00 am

Looks like you've thought this out well!

Keep up the good work, and I can't wait to see this project done.


And if you can stand to spend the money, consider finding a dyno, and doing a couple of basic runs.

I'd be real interested to find out what the full torque/hp curve looks like once you're done.
--
Bob

'91 2.6l manual trooper
Bob w/ a trooper
Rodeo King

Posts: 186
Joined: Fri Oct 16, 2009 12:51 am
Location: Houston, TX
Has thanked: 1 time
Have thanks: 1 time

Postby Madcat88/89 » Tue Dec 08, 2009 6:37 pm

Glad to see the turbo I grabbed for you is working out.

Looking good.

Jim
I have opposable thumbs I WILL prevail.

88 Isuzu Trooper - http://www.cardomain.com/ride/2941780

89 Isuzu Impulse Turbo - http://www.cardomain.com/ride/2941760
Madcat88/89
Drives on Dirt

Posts: 58
Joined: Sun Dec 06, 2009 2:24 pm
Location: Denham Springs LA
Has thanked: 0 time
Have thanks: 0 time

Postby cianciolokeith » Tue Dec 08, 2009 9:03 pm

Project stopped. Decided not to turbocharge my motor, due to lack of funds, and whatnot. Feel that this project is going to cost me too much money in the long run, because even though I have everything right now, I will want it to go faster once I am done. lol. Up for sale in classifieds right now. Full kit, with all mod work done right now.
-------------------------------------------------------------------------------------
Keith
Port St Lucie, FL 34953
(772) 626-5556
cianciolokeith@yahoo.com

32/36 DGEV + Conversion Kit for Sale - P'up, Pickup, Rodeo, Amigo, Trooper conversion kit included... $150.00 + shipping!!
cianciolokeith
Drives on Gravel

Posts: 39
Joined: Thu Sep 17, 2009 7:37 am
Location: Port St Lucie, FL
Has thanked: 0 time
Have thanks: 0 time

Re: 91 Isuzu Pickup - Impulse Turbo Project!!

Postby jmsmilin » Sun May 05, 2013 6:14 pm

I assume this is sold and gone. So the Impulse Turbo will work well on a 2.3 pickup?
90 2.3 2WD
jmsmilin
Drives on Dirt

Posts: 65
Joined: Sat Jan 26, 2013 10:22 pm
Has thanked: 3 times
Have thanks: 0 time


Return to Drivetrain Mods
